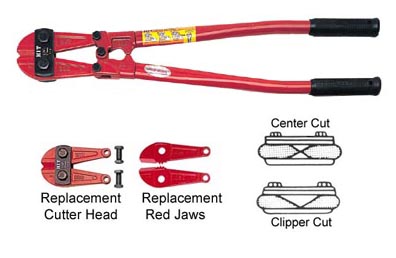

Durable jaws are made of forged high tensile steel with special heat treating, designed for cutting hard material, spring wire guys, hardened chains, high-tensile bolts, etc. |
|
Max. hardness of material to be cut: Brinell 450/Rockwell C48, 110 Tons/Sq. 162 Kg/square mm. |
|
Comfortable rubber handles for gripping firmly and safely. |
|
Exceeds U.S. Federal specification number GGG-C-740d Type II. |
| Stock No. |
Overall Length |
Cap. HRC-48 |
Jaw Type |
Wt. (Lb) |
Replacement Head |
Replacement Jaws |
| 22-BC12R |
12" |
5/32" (4mm) |
Clipper Cut |
2 |
22-BC12RB |
22-BC12RJ |
| 22-BC14R |
14" |
7/32" (5mm) |
Clipper Cut |
2 1/2 |
22-BC14RB |
22-BC14RJ |
| 22-BC18R |
18" |
9/32" (7 mm) |
Clipper Cut |
3 1/2 |
22-BC18RB |
22-BC18RJ |
| 22-BC24R |
24" |
5/16" (8mm) |
Center Cut |
6 1/2 |
22-BC24RB |
22-BC24RJ |
| 22-BC30R |
30" |
3/8" (10 mm) |
Center Cut |
9 1/4 |
22-BC30RB |
22-BC30RJ |
| 22-BC36R |
36" |
7/16" (11mm) |
Center Cut |
14 1/4 |
22-BC36RB |
22-BC36RJ |
| 22-BC42R |
42" |
1/2" (13mm) |
Center Cut |
21 |
22-BC42RB |
22-BC42RJ |
|
